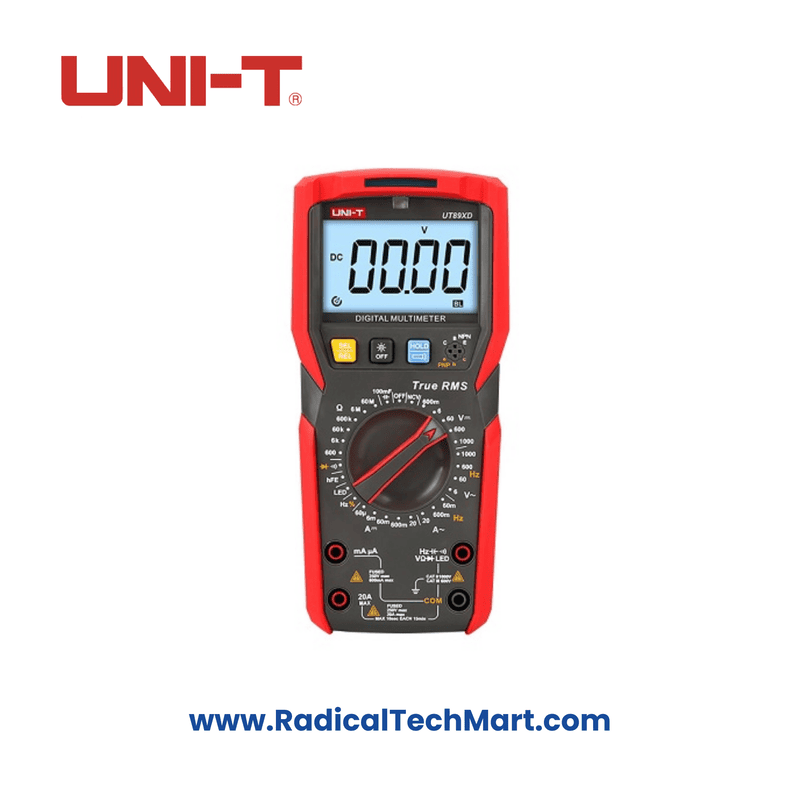

UNI-T UT89XD Digital Multimeters

The UT89XD is a reliable hand-held 3 5/6 digit digital multimeter with true RMS sine wave measurement, offering accurate and versatile testing capabilities. Key features include:

• Voltage Measurement: It can measure up to 1000V DC/AC, with a maximum accuracy of ±(0.5%+2) for DC and ±(0.8%+5) for AC.
• Current Measurement: It supports both DC and AC currents, measuring up to 20A, with an accuracy of ±(0.8%+8) for DC and ±(1%+12) for AC.
• Resistance and Capacitance: Resistance ranges from 600Ω to 60MΩ, and capacitance can be measured up to 100mF, with accuracy of ±(0.8%+3) for resistance and ±(2.5%+20) for capacitance.
• Frequency and Duty Cycle: Measures frequency from 9.999Hz to 9.999MHz, with an accuracy of ±(0.1%+4), and duty cycle from 0.1% to 99.9%, with an accuracy of ±(2%+5).
• True RMS: It ensures precise measurements for both AC and DC signals, including non-sinusoidal waveforms.
• Dual Range NCV Test: This feature allows for the quick identification of neutral and live wires, indicated by light intensity, helping distinguish between them accurately.
• Additional Testing Features: The UT89XD includes capabilities for testing diodes, transistors (hFE), continuity, and LED testing.
• User-Friendly Design: It features an ergonomic design with double injection molding for durability, a flashlight, and auto backlight for easy operation in low-light conditions.
• Drop-Proof: It is built to withstand drops from a height of up to 1 meter.
• Audible and Visual Alarms: It includes both audible and visual alarms for quick alerts during testing.
• Capacitor Charging Indicator: This feature provides a visual indicator when testing capacitors.

The UT89XD comes with a 1-year warranty, making it a reliable and durable tool for professionals and technicians.
